Product Instructions

80 series (91-97) Land Cruiser Interior Tire Carrier

Product Overview

The tire carrier consists of 4 main pieces and the optional MOLLE storage panel. 2 uprights, an adjustable cross section and the handle assembly with urethane cone.

Tool list-

  • 13mm socket
  • 10mm socket
  • ⅝” socket
  • Socket driver
  • 13mm wrench
  • Tape measure

Step 1: Lay out hardware as shown


The upper group of hardware will be used for a normal install, the additional hardware shown in the lower group is used for the optional MOLLE panel install.



___________________________________________________________________________________________________________________________________________________

Step 2: Install forward upright

Set the forward upright in place as shown and install the top M6 bolts first. Next, slide the lower mount into place till the bolt holes line up and install the two lower M8 bolts.  Depending on your carpet and padding thickness you may need to use a little force to move the lower mount in place. Thread the upper and lower bolts down but leave them loose enough for adjustment, you may need it later in the install.









___________________________________________________________________________________________________________________________________________________

Step 3: Install rear upright

Start by removing the factory tie down point and folding the carpet under as shown to expose the bolt holes that we will be using. Next, Remove the 3rd row seat belt if applicable.














Next, set upright into place and install the two lower M6 bolts. Now install the 7/16” bolt and washer into the 3rd row seat belt hole, again you may have to push down a bit depending on carpet thickness to line up the bolt hole. Also, leave these somewhat loose allowing for minor adjustment later.


___________________________________________________________________________________________________________________________________________________


Step 4: Install MOLLE panel (if applicable)

Slide the MOLLE panel in behind the uprights and install as shown using only the top two M8 bolts, nuts and washers. Leave these bolts loose. The bottom install bolts are also the bolts for the cross section which will be installed in the next step.





___________________________________________________________________________________________________________________________________________________

Step 5: Measure for tire size and install cross section

Grab your spare and set it on its side against a flat surface such as a wall, tool box, etc. as shown. Now measure out from that surface and eyeball your tire size. Remember the size written on your tire or what's claimed by the manufacturer is not always the true size. The goal here is to get a rough measurement so you can set the cross section in the correct place for your tire size, this can always be adjusted easily later. Take that measurement and cut it in half, that'll be the height off the floor that you set your cross section to. Example: This tire measures out to 33.5”.  33.5”/2=16.75”. Set your cross section to 16.75” off the ground. This doesn't have to be perfect but it'll get you a good starting point.








Install the cross section using the remaining M8 hardware and set to your measured height. This is where the adjustment comes in, you may need to adjust the uprights in or out till the cross section bolts line up and it moves freely up and down. Once the cross section is in and adjusted you may now fully tighten all hardware.


___________________________________________________________________________________________________________________________________________________


Step 6: Install Spare tire and Handle

Install the urethane cone on your handle in the orientation shown. You may need to mount your wheel facing in or out depending on the shape of the wheel and the offset. Make sure the urethane cone rests squarely in the wheel bore and that there is no interference between your wheel and handle. Although it will fit the majority of wheels, we cannot guarantee that the handle will fit every wheel out there. If there is contact between the handle and the wheel you may need to slightly bend the handle till it clears the wheel or space the handle away from the urethane cone using a spacer or washers. (not supplied)

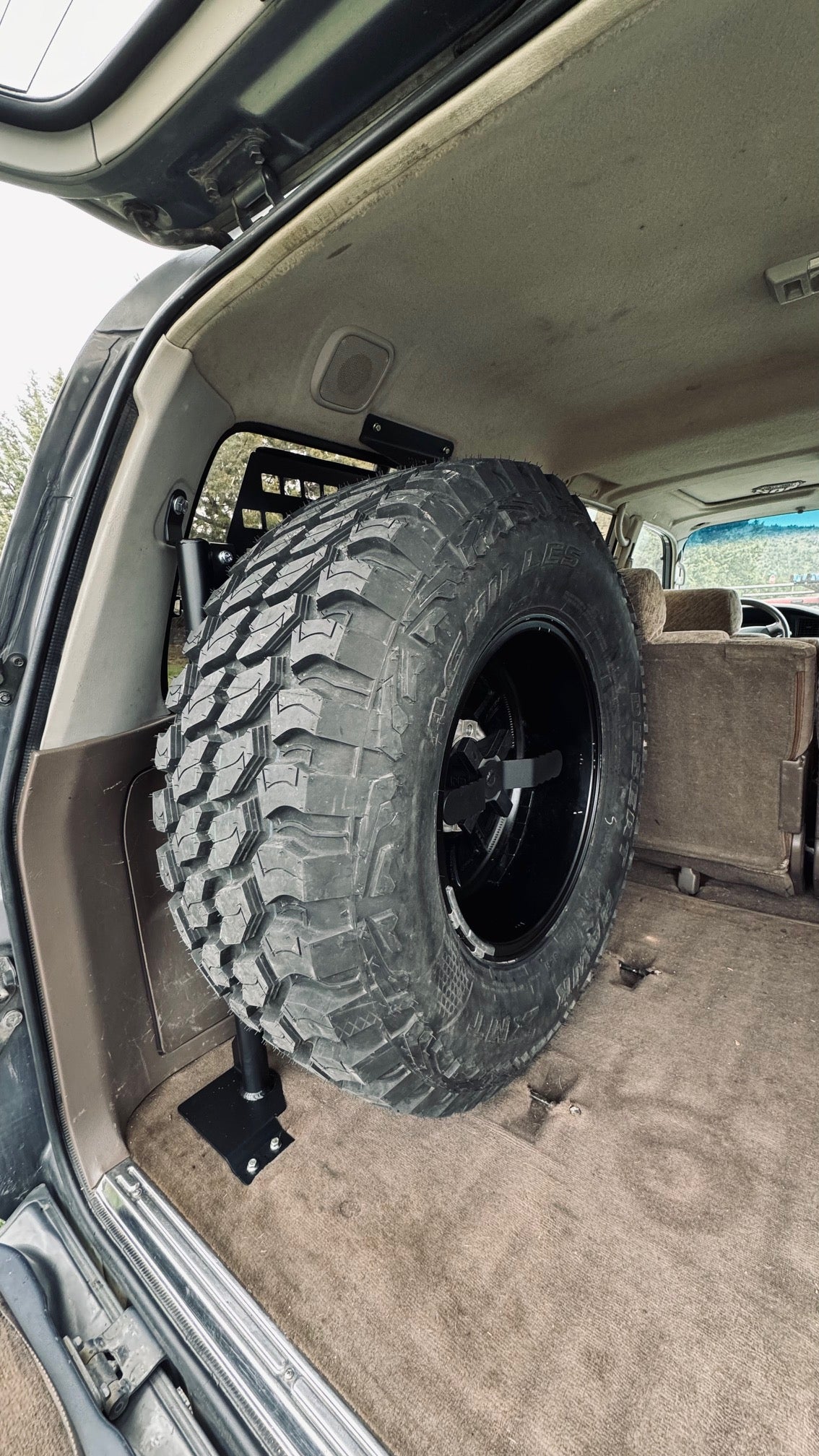

The install is now complete. Thank you so much for purchasing our products, we appreciate each and every one of you. Please contact us with any questions, concerns or feedback!
